Flexible and space-saving

Safe power supply to equipment such as motors is decisive for the availability of plants and machines. The use of increasingly large wire cross-sections and restricted space in the panel is increasing the demands on modular terminal blocks and distribution blocks - and posing new challenges for panel planners. Our comprehensive product range for power distribution ensures excellent flexibility, even in the planning stages.

Our product range

Screw connection technology

Patented clamping yoke technology ensures the ultimate in contact safety

PUSH IN connection technology

Increase efficiency in installation without compromising on safety

Tension clamp technology

Universal contact system for all common conductor connection types

Stud connection technology

Established, robust connection alternative for particularly harsh environments

Product innovations

Power distribution one step ahead

Klippon® Connect distribution blocks WPD 111 and WPD 113 – UL-LISTED out now

The use of increasingly large wire cross-sections and restricted space in the panel is increasing the demands on terminal blocks and distribution blocks and posing new challenges for panel planners.

The WPD 111 and WPD 113 power distribution blocks meet the increased requirements of UL 1953 and are therefore now also UL-listed.

To meet these requirements, the distribution blocks have the required clearances and creepage distances and have been listed with an SCCR rating of 200 kA.

Power distribution one step ahead
  • Available in the colours grey, blue, red and black
  • Self-extinguishing, halogen-free plastic housing
  • High finger protection according to EN 50274
  • Short circuit resistance according to high SCCR standard 200kA
  • UL Listed

Klippon® Connect AWPD potential distribution terminal blocks Product innovation

Our AWPD terminal blocks for power distribution combine the advantages of clamping yoke and PUSH IN technology in one product. Power is supplied from the side of the terminal block using a reliable and proven screw connection with clamping yoke technology. The potential is distributed via space-saving PUSH IN connections on the top of the terminal block. This ensures fast, simple, and tool-free wiring even in confined spaces.

Klippon® Connect AWPD potential distribution terminal blocks
  • Compatible with Klippon® Connect A range
  • Standardised testing point
  • Compact and robust design
  • Distinct contact identification

High Voltage Terminals compact and modular in sizes M8, M10 and M12

Our high voltage terminals are designed as a modular and therefore scalable system. In addition, to standard applications we offer our compact range, which consists of fixed blocks from two to six poles. Nearly all customerspecific applications can be solved with our modular range, which can be engineered and assembled completely free.

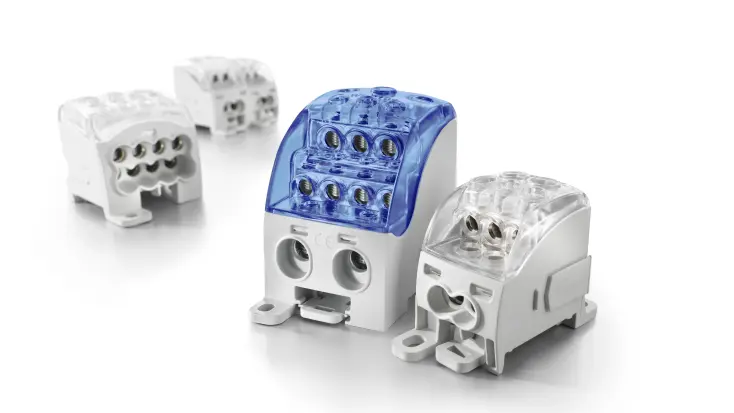

WPD distribution blocks for potential distribution, also in Ex areas Product innovation

The energy and zero potentials that are fed into machines and plants often need to be distributed even further to supply, for example, motors. Those extensions have to be as safe, efficient, and space-saving as possible. WPD distribution blocks have a unique echelon form and screw heads in an offset position. The latter ensure at every echelon level a safe and comfortable connection in systems and housings, even in confined spaces.

WPD distribution blocks for potential distribution, also in Ex areas
  • First phase distribution block with IECEx approval
  • Available in the colours grey (phase distribution) or blue (neutral distribution)
  • Self-extinguishing, halogen-free plastic housing
  • High finger protection according to EN 50274
  • Short circuit resistance according to high SCCR standard

Compact power feed-in and distribution

Klippon® Connect ALO is a standardised system that allows for the feed-in of power with large cross-sections, while also making it possible to further distribute the power within the panel via standard cross-connections. The uniform position of the cross-connection channels allows for convenient potential distribution in all cross-section ranges from 1.5 to 16 mm². Panel planners therefore have a system of terminal blocks for all applications, and can easily carry out subsequent extensions.
